HummBox catalog

Environmental sensors connected through Sigfox or Lora & self powered

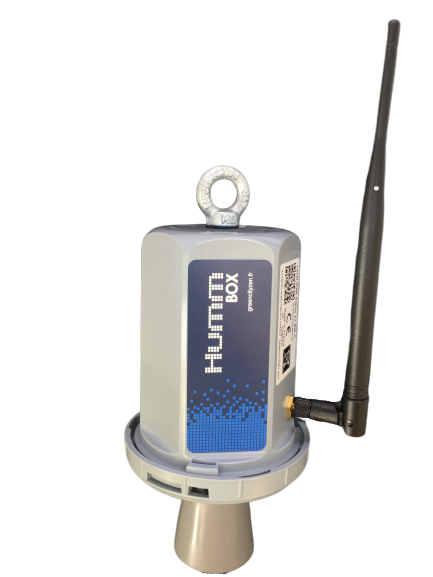

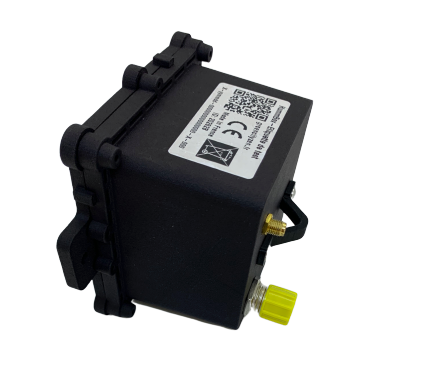

HummBox Level Sensor (Ultrasonic)

Ultrasonic connected sensor for level measurement

Ultrasonic Level sensor – Hummbox Level 3rd generation.

A connected ultrasonic level sensor, communicating with Sigfox or Lora, self powered, to monitor continuously level, volume and distance.



A connected level sensor to measure liquid, waste, water waste level

Ultrasonic Level Sensor – Connected with Sigfox & Lora

Applications :

  • Liquid level measurement (water, oil, chemicals,..)
  • Waste/Bin level measurement
  • Waste water level measurement (sewage)



Main features :

  • Ultrasonic measurement, temperature compensation

– Reliable data with « Anomaly Tagging » patent

  • LPWAN communication (Sigfox ou LoRaWAN)
  • Measurement frequency configurable via the application over the cloud
  • Device restart via the application over the cloud
  • Autonomy

o Up to 12 years autonomy

o Patented “Smart Frequency” to extend battery life

– Self adapted transmission frequency upon signal dynamic

– Up to 250% battery life increase

– Global improvement of network performance.

  • Easy to install

– 3 mounting possibilities ( plane, wall, pendulum)

– In situ configuration via wire push button

– Sonor feedback

  • ADR (Adaptative Data Rate) available for LoRaWAN network
  • Waterproof and robust package (IP68)
  • Protection against chemical (option)
  • European design Made in France



Benefit :

  • Low total cost of ownership
  • Reliable data measurement
  • Boost battery life
  • Dual mode LoRaWan or Sigfox for more flexibility
  • One sensor for several usage



Ultrasonic level Sensor



Sensor characteristics

Distance Min-Max : 20 cm-5m

Precision : Typical +- 2cm (mm in option)

Resolution : +- 0,5 mm

Temperature compensation : Yes

Data filtering on sensor : Yes

CEM protection : Yes

Chemical protection : Option



Electronic characteristics

Radio frequency : 868 Mhz; 915Mhz; 923 Mhz

Standard LoRaWan :

   – Transmission power: 14dBm

   – EIRP: 16 dBm

   – Receptor sensitivity: -148dBm

Sigfox :

   – Transmission power: 14dBm

   – EIRP : 16 dBm

Receptor sensitivity: -126 dBm

Antenna :  Internal / External (option)$

Measurement frequency:  Configurable via cloud (1 to 144 times/ day)  & Adaptative frequency with « Smart Frequency »

Operating temperature : -20°C + 50°C

Storage temperature : +20°C ; +25°C

Power supply : Batterie Li-SOCl2 – 3,6V 6500mAh- type C (Ø26x50mm)

Autonomy : Batterie C up to 12 years for 6 measure per day @ 20°C in LoRaWAN

X 2,5 with « Smart Frequency »

Conformance : CE, ROHS, LoRaWan, Sigfox, Objenious, Orange

Mechanical characteristics

Size : 90 x 90 x 70 mm

Weight : 200g

Waterproofness : IP68

Enclosure : Polypropylene – black- UV stabilized

Mounting : rivet; screw, clamp; pendulum; mural via square



Other Level sensors





Desktop & mobile web App

Learn more about App



Learn more

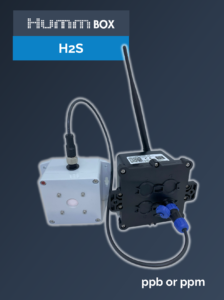

HummBox H2S ppb – ppm

H2S connected sensor

HummBox H2S is a connected H2S (hydrogen sulfide) sensor, with Sigfox or Lora, self powered, to monitor odours issues.

H2S Cells are interchangeable.

H2S ppb sensor

  • Precision : ±8 ppb (RMS)
  • Resolution : 0,68 ppb
  • Functional range : 0 à 2 300 ppb, -30 à +50°C
  • Limit of operational range : 100 ppm
  • Deviation : up to 20% per year

H2S ppm sensor

  • Precision : ± 0,5 ppm (RMS)
  • Resolution: 0,56 ppm
  • Functional range : 0 à 2 000  ppm, -30 à +50°C
  • Limit of operational range : 10 000 ppm
  • Deviation: up to 3% per year

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Waterproof box and sensor IP65
  • Easy mounting with screws or clamp
  • Size: 115 x 65 x 55 mm, Cell box size: 80 x 80 x 55 mm
  • Weight: 200g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery C  : 3 years for 24 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored. For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Desktop & mobile web App

Learn more about App









Hummbox Level Piezo – Connected Piezo sensor for level monitoring

Piezo pressure sensor, connected and autonomous solution

HummBox Level Pressure is a piezo sensor, connected via Sigfox or LoraWan, self-powered, for continuous level monitoring in wells, tanks, and boreholes. Level measurement is carried out by differential pressure measurement between the liquid surface and the position of the submersible transmitter.

Applications :

  • Pressure measurement in boreholes, tanks, sanitation.

Main features :

Temperature compensated and reliable pressure measurement
Sensor for sanitation environment (option)
LPWAN communication (Sigfox ou LoRaWAN)
European design made in France

Benefits :

  • Low total cost of ownership
  • Reliable data measurement
  • Boost battery life
  • Dual mode LoRa Sigfox for more flexibility

Sensor characteristics :

  • Operating range : 0,1 à 9 bars
  • Distance range : 1m to 90m (configured at factory upon requirement)
  • Hysteresis : 0,10% of P.E (constant temperature)
  • Non-linearity : 0,15% of P.E (constant temperature)
  • Response time : 1 ms
  • Operating range : -40°C +125°C
  • Temperature compensation : Yes
  • Data filtering on sensor : Yes
  • CEM Protection : Yes

Connectivity

  • Radio link LPWan : Sigfox or Lora
  • Internal and external antenna (or external with extension)

User interactions

  • Push button for instant measurement and configuration change
  • Acoustic feedback to take interactions into account

Mechanical characteristics

  • Box and waterproof sensor IP67
  • Size : L 145 x w 91,36 x h 55 mm
  • Weight : 220-300g
  • Pressure sensor : piezo resistive on insulator and flexible silicone membrane.
  • Diameter : 18 mm
  • Height : 180 mm (without cable)
  • Weight : 210 g without cable ; supplied with 10 meters cable as standard (475 g) or more on request
  • Fixing : pendular, transmitter suspended by sound cable, supplied with a suspension system

Autonomy & Measurement frequency

Configurable via cloud (1 to 144 times / day)

Adaptative frequency with “Smart Frequency” : up to 250 % battery life increase, global improvement of network performance, self adapted transmission frequency upon signal dynamic

Battery C : Up to 12 years autonomy for 6 measures per day @ 20 °C in LoRaWAN

Web & Mobile applications

Learn more about the application











You’re interested by our sensor ? Contact us !

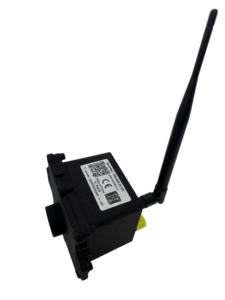

HummBox Network Pressure

Connected and autonomous sensor (Sigfox and Lorawan)

HummBox Pressure sensor is a connected and autonomous solution for continuous monitoring of pressure in water networks.

Applications :

  • Pressure measurement in water, gas, oil linesHummBox Pressure Sigfox Lorawan
  • Leaks detection
  • Balance pressure in the networks to avoid leaks

Main features :

Pressure compensated temperature measurement and reliable
Communication LPWAN (Sigfox or LoRaWAN)
European design made in France

Benefits :

  • Low total cost of ownership
  • Reliable data measurement
  • Boost battery life
  • Dual mode LoRa Sigfox for more flexibility

pressure sensor sanitation

Pressure sensor characteristics

  • Operating range : 0 to 200 psi (0-14 bars)
  • Precision : 1 % (full scale) (2 psi or 0,141 bar)
  • Resolution : 0,01 bar
  • Stability : Long term, +- 0,2%FS/an
  • Response time : 1 ms
  • Operating temperature : -40°C +125°C
  • Temperature compensation : Yes

Connectivity

  • Radio link LPWan : Sigfox or Lora
  • Internal, external antenna, and external with extension

Users interactions

  • Push button for instant measurement and configuration change
  • Acoustic feedback to take interactions into account

Mechanical characteristics

  • Box and waterproof sensor IP68pressure sensor for water oil gas lines
  • Mounting : Rivet, screw, clamp, pendulum, mural via square
  • Dimensions : 90 x 90 x 70 mm,
  • Weight : 200-300g

Autonomy and measure frequency

Configurable via cloud (1 to 144 times / day)

Adaptative frequency with “Smart Frequency” : up to 250 % battery life increase, global improvement of network performance, self adapted transmission frequency upon signal dynamic

Battery C : Up to 12 years autonomy for 6 measures per day @ 20 °C in LoRaWAN

Web & mobile application

Learn more about our application
Hummbox pressure sensor applications





Product version

Level pressure piezo





You’re interested in our HummBox Pressure solution ? Contact us !

















HummBox Soil & Weather

Connected sensor for soil moisture and temperature measurement

HummBox Soil & Weather is a connected soil temperature humidity sensor to monitor continuously soil moisture and temperature measurements.

Soil Moisture connected sensor (VWC)

  • Precision < 2% (0 to 60%)
  • Resolution: 1%

Air temperature connected sensor

  • Precision: 1%
  • Resolution: 0,1°C
  • Measurement range: 0 to +55°C

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Waterproof box and sensor IP65
  • Easy mounting with screws or clamp
  • Size: 115 x 65 x 55 mm
  • Weight: 200g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery AA

  • 5 years for 2 measures per day
  • 2 years for 12 measures per day

Battery C (option)

  • 12 years for 2 measures per day
  • 7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options

Desktop & mobile web App

Learn more about App

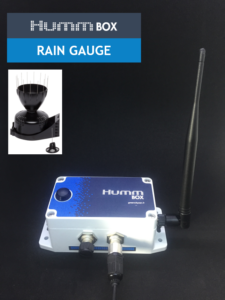

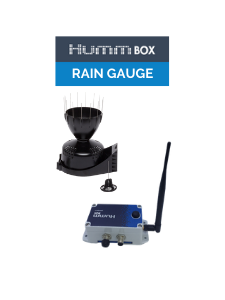

HummBox Rain gauge

Connected & self powered rain gauge

HummBox Rain Gauge is a connected and self powered rain gauge.

Connected rain gauge

  • Precision : 0,2 mm
  • Resolution : 0,1 m
  • Double offset bucket

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Waterproof box and sensor IP65
  • Easy mounting with screws or clamp
  • Size: 115 x 65 x 55 mm
  • Weight: 200g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery AA

  • 5 years for 2 measures per day
  • 2 years for 12 measures per day

Battery C (option)

  • 12 years for 2 measures per day
  • 7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options

  • Second connector can be used for Temperature and humidity sensor
  • Battery C for autonomy extension
  • Coupled with temperature & humidity sensors + HummBox Anemometer for a full Weather station

Desktop & mobile web App

Learn more about App







Learn more

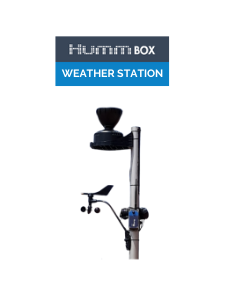

HummBox Weather station

Connected & self powered weather station

HummBox Weather station is a connected and self powered weather station.

Connected rain gauge + Temperature & humidity

  • Rain gauge resolution: 0,2 mm, Double offset bucket
  • Temperature range: -20 to 50°C, Precision : ± 0,2°C
  • Humidity range: 0 to 100%, Functional range : -20 to +70°C, Precision : 2%

Connected anemometer

  • Wind speed: resolution 1 km/h, from 1 to 322 km/h, precision 3 km/h
  • Wind direction: precision ±3°
  • Cable lenght: 12.2 m

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Waterproof box and sensor IP65
  • Easy mounting with screws or clamp
  • Size: 115 x 65 x 55 mm
  • Weight: 200g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery AA

  • 5 years for 2 measures per day
  • 2 years for 12 measures per day

Battery C (option)

  • 12 years for 2 measures per day
  • 7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options

  • Battery C for autonomy extension

Desktop & mobile web App

Learn more about App

Learn more

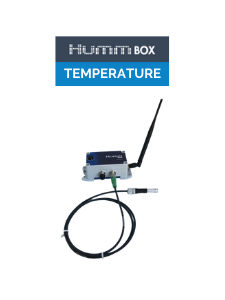

HummBox Temperature

Connected temperature sensor for continuous monitoring

HummBox Temperature is connected temperature sensor for continuous monitoring.

Temperature connected sensor

  • Measurement range: -55°C to +125°C
  • Precision : ±0.5°C accuracy from -10°C to +85°C

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Waterproof box IP65
  • Easy mounting with screws or clamp
  • Size: 115 x 65 x 55 mm
  • Weight: 200g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery AA

  • 5 years for 2 measures per day
  • 2 years for 12 measures per day

Battery C (option)

  • 12 years for 2 measures per day
  • 7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options

  • Battery C for autonomy extension

Applications

  • Thermostatic Controls
  • Industrial Systems
  • Thermometers

Desktop & mobile web App
Learn more about App

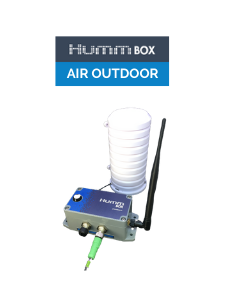

HummBox Air Outdoor

Connected device for ambiant temperature & relative humidity measurement

HummBox Air Outdoor is connected temperature & humidity sensor for continuous monitoring.

Ambiant Temperature connected sensor

  • Measurement range : -20 to 85°C
  • Precision : ± 0,2°C

Ambiant Humidity connected sensor

  • Measurement range : 0 to 100%
  • Functional range : -20 to +70°C
  • Precision : 2%

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Waterproof box IP65
  • Easy mounting with screws or clamp
  • Size: 115 x 65 x 55 mm
  • Weight: 200g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery AA

  • 5 years for 2 measures per day
  • 2 years for 12 measures per day

Battery C (option)

  • 12 years for 2 measures per day
  • 7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options

  • Battery C for autonomy extension
  • Second connector can by used for connected rain gauge

Desktop & mobile web App
Learn more about App

Learn more

HummBox Room Monitor

Connected device for ambiant temperature, humidity, CO2, light & presence measurement

HummBox Room Monitor is connected device to monitor continuously CO2, ambiant temperature, humidity, light and presence.

Temperature connected sensor

  • Measurement range : -20 to 85°C
  • Precision : ± 0,2°C

Humidity connected sensor

  • Measurement range : 0 to 100%
  • Functional range : -20 to +70°C
  • Precision : 2%

CO2 connected sensor

  • Measurement range: 0 to 5000 ppm
  • Precision : ± 50 ppm
  • Functional range: 0 to +50°C

Light connected sensor

  • Measurement range: 0.01 lux to 83 k.lux

PIR connected sensor

  • Zone: pyramid base of 14,8m x 11,3m, on 5 m high

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Mouting options : screw, velcro strips, wall power plug
  • Size: 120 x 80 x 33 mm
  • Weight: 140 g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery C

  • 12 years for 2 measures per day
  • 7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options

  • External power supply : 9-24 Volts, 220 Volts
  • Can be coupled with HummBox actuator to control heating and ventilation

Desktop & mobile web App
Learn more about App







Learn more

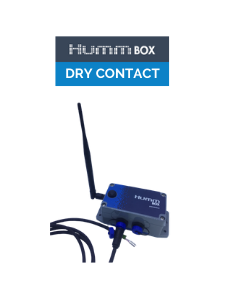

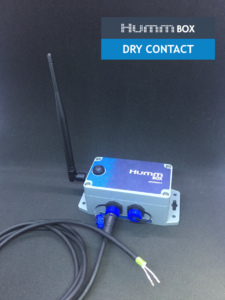

HummBox Dry contact

Dry contact connected sensor

Hummbox Dry contact is a connected dry contact sensor for level monitoring, building management (presence, opening detection) or smart industry (machine state detection and alarms).

Sensor dry contact

  • Dry contact
  • Transmission on event

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Waterproof box IP65
  • Easy mounting with screws or clamp
  • Size: 115 x 65 x 55 mm
  • Weight: 200g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery AA

  • 5 years for 2 measures per day
  • 2 years for 12 measures per day

Battery C (option)

  • 12 years for 2 measures per day
  • 7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options

  • Battery C for autonomy extension

Use cases

  • Logistic and level Monitoring
  • Building management (presence, opening detection)
  • Smart industry (machine state detection and alarms)

Desktop & mobile web App

Learn more about App









Learn more

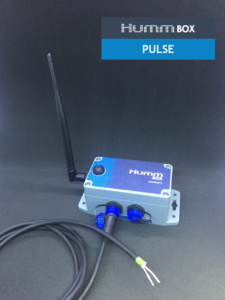

HummBox Pulse

Connected pulse sensor for any type of meter

HummBox Pulse is a connected pulse sensor to monitor continuously pulses interface from any meter (water, electricity, gaz, rain collectors…).

Use cases

  • Metering
  • Irrigation and water management

Pulse sensor connected

  • Pulse counting

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Button for on-site configuration and instant measurement
  • Audio feedback for interactions

Box and mounting

  • Waterproof box IP65
  • Easy mounting with screws or clamp
  • Size: 115 x 65 x 55 mm
  • Weight: 200g

Autonomy and measurement frequency

Measurement frequency can be managed over the cloud from once a day to 144 times per day (every 10 minutes)

Battery AA

  • 5 years for 2 measures per day
  • 2 years for 12 measures per day

Battery C (option)

  • 12 years for 2 measures per day
  • 7 years for 12 measures per day

Smart frequency mode increases battery life time adapting the frequency to the dynamic of the physical paramater monitored.

For example, in standard case, the autonomy can be increased from 2 years to 4.5 years.

Options

  • Battery C for autonomy extension

Desktop & mobile web App

Learn more about App

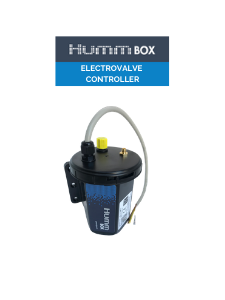

HummBox ElectroValve controller

Connected water meter and ElectroValves controller for watering optimization

HummBox ElectroValve Controller is a device dedicated to smart watering. It has 1 pulse magnetic header input and up to 4 electrovalve actuation outputs. Electrovalve is directly connected to our ElectroValve controler, without any additional relay. The connected electrovalve programmator complies with impulse or stardard electrovalve solenoid.

Inputs/Outputs

  • 1 input for water metering using pulse magnetic header
  • 1, 2 or 4 outputs for electrovalves actuation

Features

  • Watering programmation modes : Periodic or Agenda
  • Capability to update the watering planning 4 times a day
  • Capability to pause watering planning based on business rules
  • Alerts on battery level or ElectroValve disconnected
  • Report message with electrovalve status and watermeter every 3 hours

Connectivity

  • LPWAN: Sigfox or Lora
  • External antenna

User interaction

  • Magnet interaction to switch to hibernation mode or reboot, with audio feedback

Box and mounting

  • Waterproof box IP68
  • Size: 140 x 100 x 100 mm
  • Weight: 200g

Power supply and autonomy

  • Internal for 9V pulse electrovalves. With one electrovalve actuation per day, autonomy is over 5 years
    Easy to switch solenoid 12V or 24V to 9v solenoid



Desktop & mobile web App

Learn more about App









learn more
